✅ In Stock

VERTIV

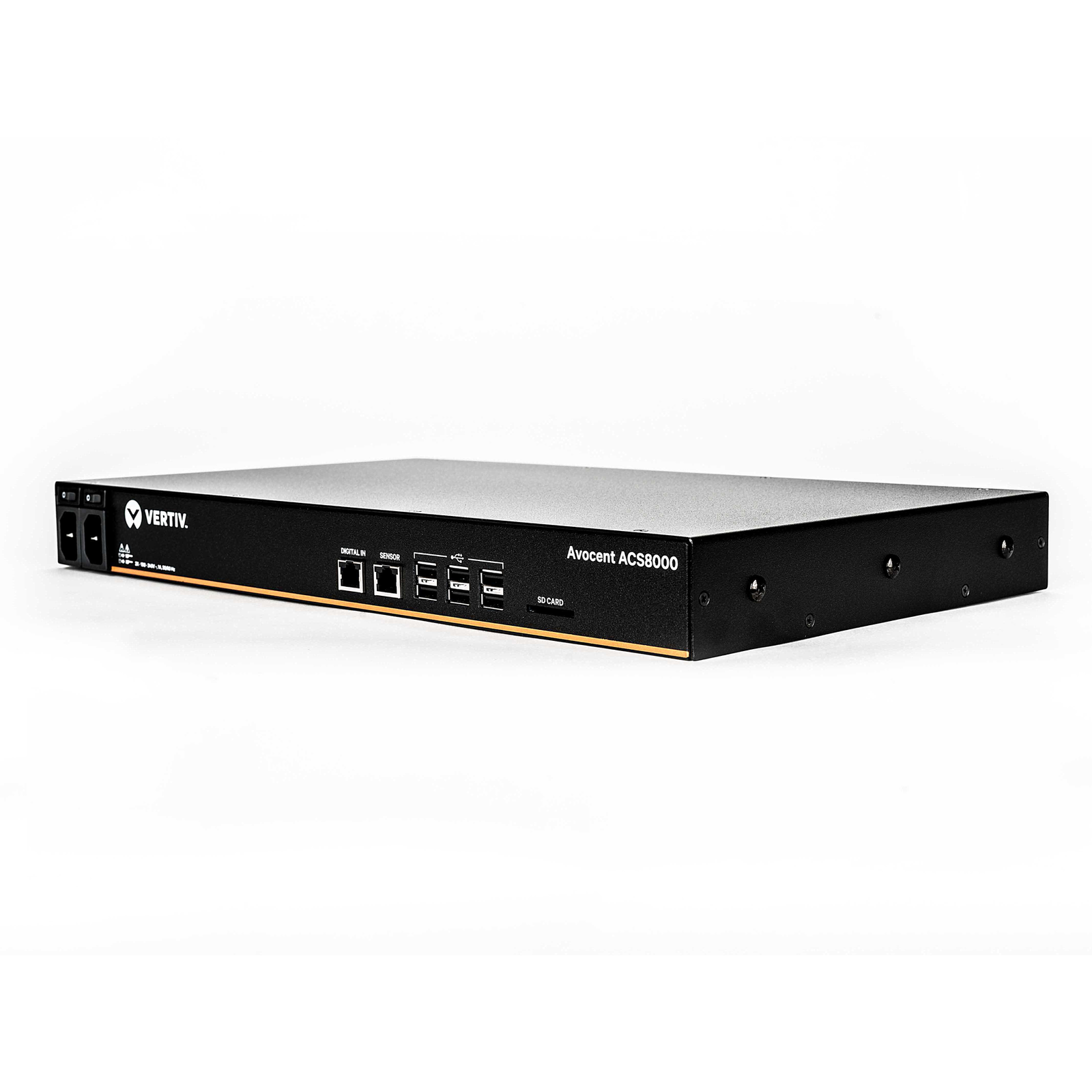

Vertiv Avocent 32-Port ACS 8000 with dual AC Power Supply and Analog Modem - ACS8032MDAC-404

R91,850

incl. VAT: R105,628

Stock: Backordered - delivers in 10-15 days
Brand: VERTIV
Model: ACS8032MDAC-404
Weight: 5.41 kg
Dimensions: 56 × 35 × 20 cm
EAN: 636430086293
Product code: 710909

VERTIV

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R91,850 incl. VAT: R105,628

Qty

Save PDF

Key features

Secure in-band and out-of-band network remote management
Fast, automated configuration with Zero Touch Provisioning
Access and troubleshoot remote locations using automatic network failover
No need for adaptors with automatic Cyclades™ and Cisco pin-out conversions
Compliance with data center access and security policies
Console event logging and notification
Integrated support for 1Gb SFP fiber modules
USB ports to support new IT equipment and external devices

Tags: vertiv servers , vertiv server

Description
Specifications

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).

Technical details
Rack mounting	Yes
Internal modem	Yes
Zero Touch Provisioning (ZTP)	Yes
Web-based management	Yes
Temperature sensor	Yes
Product colour	Black
Management features
Management protocols	CLI, HTTP/ HTTPS, SNMP
Security
Authentication method	LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
IP address filtering	Yes
One-time password (OTP)	Yes
Ports & interfaces
Console port	RJ-45
Serial ports quantity	32
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	2
SFP module slots quantity	2
AC outlet types	C13 coupler
Software
Operating system installed	Embedded LINUX
Weight & dimensions
Dimensions (WxDxH)	438.2 x 241.3 x 44.5 mm
Weight	3.4 kg
Power
Power source type	AC
AC input voltage	106 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Power consumption (max)	35 W
Input current	0.1 A
Number of power supply units	2
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Memory
Flash memory	16000 MB
RAM capacity	1024 MB
RAM type	DDR3L
eMMC capacity	16 GB
Processor
Processor family	ARM Cortex-A9
Processor architecture	ARM Cortex-A9
Processor cores	2
Processor frequency	667 MHz
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber
Other features
Safety	UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
